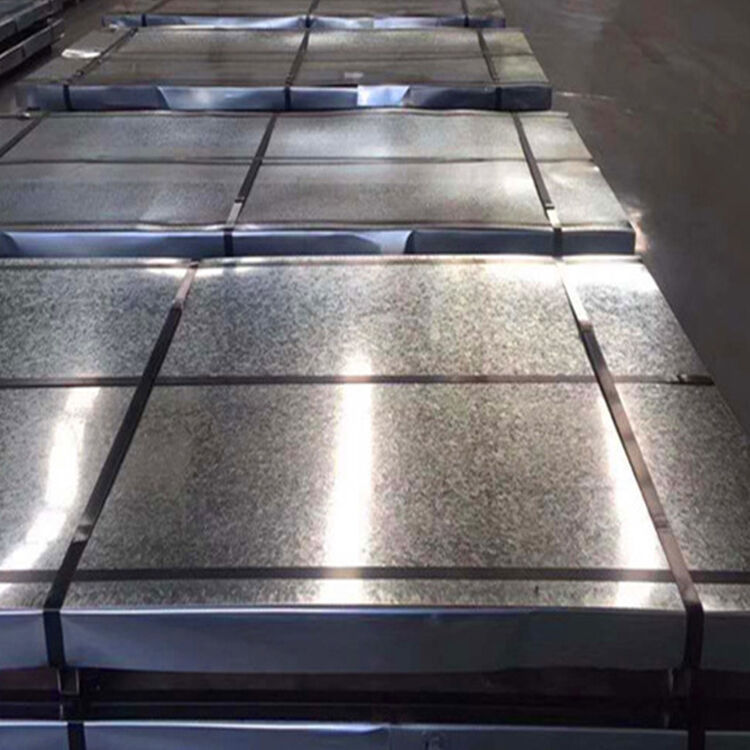

Q195 Galvanized Steel Sheet
DELONG STEEL manufactures and supplies different grades galvanized steel sheet with full size.
Q195 is a carbon structural steel with a yield strength of 195mpa. Lower strength than Q235. Used in architecture, structure, motorcycle frame, etc. The brand of American ASTM is gr.b( σ s185)。 σ S185 is the yield strength of 185mpa. It is used to manufacture anchor bolts, plowshares, chimney, roof panels, rivets, low-carbon steel wires, thin plates, welded pipes, pull rods, hooks, supports, welded structures, etc. Rolled sheet and wire rod. Cold and hot rolled steel sheets and galvanized, tinned and plastic composite steel sheets made from them are widely used in roof panels, decorative panels, general dust removal pipes, packaging containers, iron drums, instrument shells, switch boxes, protective covers, train carriages, etc. Wire rods are mostly cold drawn into low-carbon steel wires or galvanized into galvanized low-carbon steel wires, which are used for binding, tensioning and fixing, or as steel wire mesh, rivets, etc.
Product Name | Q195 Galvanized Steel Sheet |
Length | 1-12m or as required |
Width | 600mm-1250mm or as required |
Thickness | 0.4mm-320mm or as required |
Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
Technique | Cold rolled,Hot rolled |
Surface Treatment | Clean, blasting and painting according to customer requirement |
Thickness tolerance | ±0.15mm |
Material | DX51D,Z275,G90,G550,A36,SGCC,SG,DX52D,DX53D |
Q345,Q345A,Q345B,Q345C,Q345D,Q345E,Q235B | |
HC340LA,HC380LA,HC420LA | |
B340LA,B410LA | |
15CRMO,12Cr1MoV,20CR,40CR,65MN | |
A709GR50 | |
Coatings | Top Coats :5 micron primer + 20 micron colour Back Coat: 5 micron primer – 7 micron primer |
MOQ | 1tons. We also can accept sample order. |
Shipment time | Within 7-15 workdays after receiving deposit or L/C |

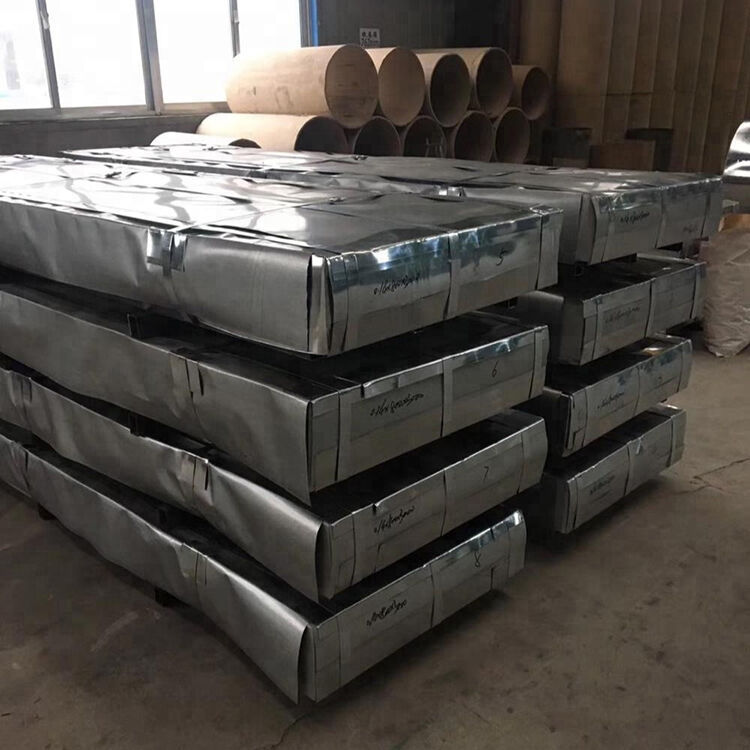

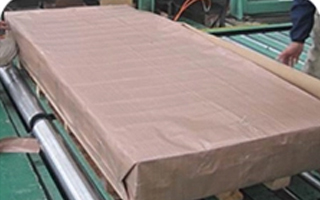

Export packing | Waterproof paper, and steel strip packed. |
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required | |
Application | Galvanized steel is available in a variety of forms, such as galvanized pipes and galvanized wire. It is used everywhere. |
Galvanized steel frames are used to build houses. | |
Car parts are made out of galvanized steel, for example, the body of trucks and buses. | |
Galvanized metal has found its way into several household appliances such as washing machines, air conditioning housings, hair | |
dryers, etc. | |
It is used in high tension electrical towers, protective gears, highway signs etc. | |
It is also used to make wrought iron gates and other items. | |
Also used to make metal pails. |

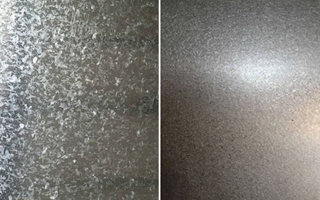

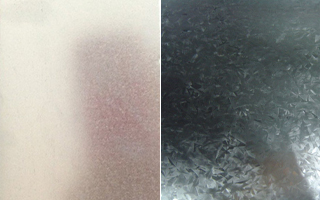

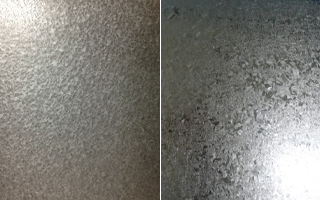

Spangles
