EN 10025 S235JR material (1.0038 steel) is an European standard hot rolled non-alloy structural steel grade. It has good plasticity, toughness and weldability, certain strength and good cold bending properties. For specification, datasheet and equivalent, please see the following tables.
Material S235JR meaning (designation):
“S” is short for structural steel;
“235” refers to the minimum yield strength (MPa) for the steel thickness ≤ 16mm;
“JR” indicates the quality grade related to charpy impact test energy value ≥ 27 J, at room temperature 20℃;
“C” means the material is suitable for cold flanging, cold bending, cold forming or cold drawing, e.g. S235JRC (1.0122).
1.0038 is the steel number of this steel.
Carbon steel S235JR general delivery conditions are as follows:
+AR means “as-rolled” and delivery condition without special rolling and/or heat treatment.
+N stands for “normalized or normalized formed”
+M refers to “thermomechanically formed – TMCP”
+C is the “cold work hardened”
+A means that the mateiral is in the soft annealed condition.
+AT means that the steel is in the solution annealed condition.
Example 1: When the delivery condition is as-rolled or normalized, the steel name is given as S235JR+AR (1.0038+AR) or S235JR+N (1.0038+N).
Example 2: S235JRC steel means the material is suitable for cold flanging, cold bending, cold forming or cold drawing.
Example 3: If S235JRC steel is delivered in the condition of cold work hardened, it’s named as S235JRC+C (1.0122+C).
Chemical composition & Mechanical property
Chemical Composition of S235JR Material (EN 1.0038 Steel)
The following table shows (1.0038) S235JR chemical composition based on ladle analysis.
The following table shows (1.0038) S235JR chemical composition based on ladle analysis.
![](http://www.delongmetal.com/Public/upload/product_content/admin_6_49b6de0c6e048e4dbab556de245770a5/20211118114303_6195cbc786ff6.jpg)
Physical Properties of S235JR Steel (1.0038 Material)
Material density: 7.85g/cm3
Melting point: 1420-1460 °C (2590-2660 °F)
S235JR Steel (1.0038 Material) Mechanical Properties
The yield strength, tensile strength, elongation, and Charpy impact test are listed in the following data sheet.
EN 1.0038 material Brinell hardness: ≤120 HBW
Charpy impact value: ≥ 27J, at room temperature 20 ℃.
Yield Strength
Melting point: 1420-1460 °C (2590-2660 °F)
S235JR Steel (1.0038 Material) Mechanical Properties
The yield strength, tensile strength, elongation, and Charpy impact test are listed in the following data sheet.
EN 1.0038 material Brinell hardness: ≤120 HBW
Charpy impact value: ≥ 27J, at room temperature 20 ℃.
Yield Strength
![](http://www.delongmetal.com/Public/upload/product_content/admin_6_49b6de0c6e048e4dbab556de245770a5/20211118114808_6195ccf8bad8a.jpg)
Tensile Strength
![](http://www.delongmetal.com/Public/upload/product_content/admin_6_49b6de0c6e048e4dbab556de245770a5/20211118114933_6195cd4ddc43c.jpg)
1MPa = 1N/mm2
Elongation
Elongation
![](http://www.delongmetal.com/Public/upload/product_content/admin_6_49b6de0c6e048e4dbab556de245770a5/20211118115107_6195cdab476bb.jpg)

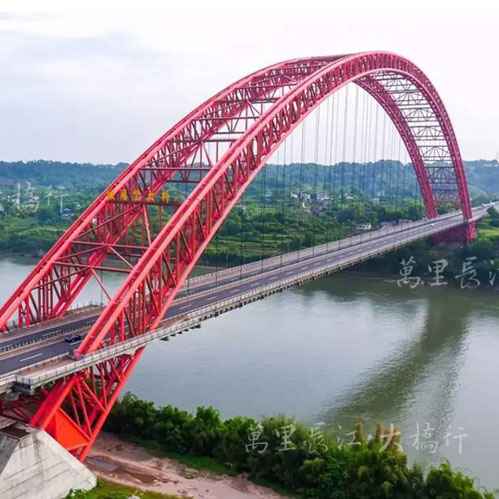

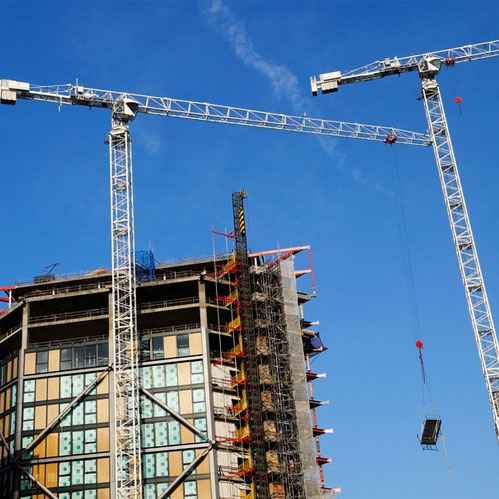

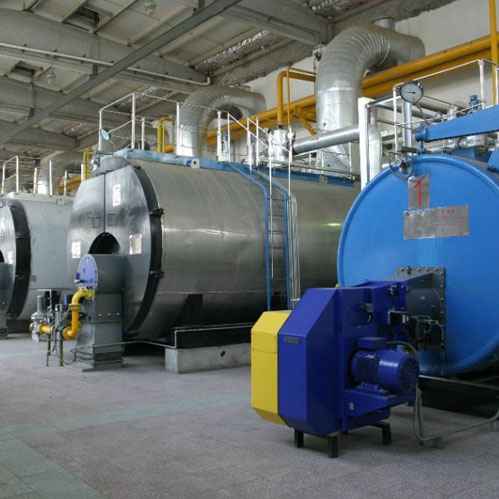

ApplicationsEN 1.0038 material can be made into many steel products, such as H beam, I beam, steel channel, steel plate, steel angle, steel pipe, wire rods, and nails, etc. and these products are widely used in general requirements for welded structures and parts such as bridges, transmission towers, boilers, steel structure factories, shopping centers and other buildings, etc.
